Balboa mid VL and Deluxe VL Hot Tub Touch Panels
Hot Tub replacement Touch Panels are also known as Topside Control or Touch Pads. The Hot Tub Touch Panel sends all the information to the Spa Control Box to operate the Hot Tub.
Full Description

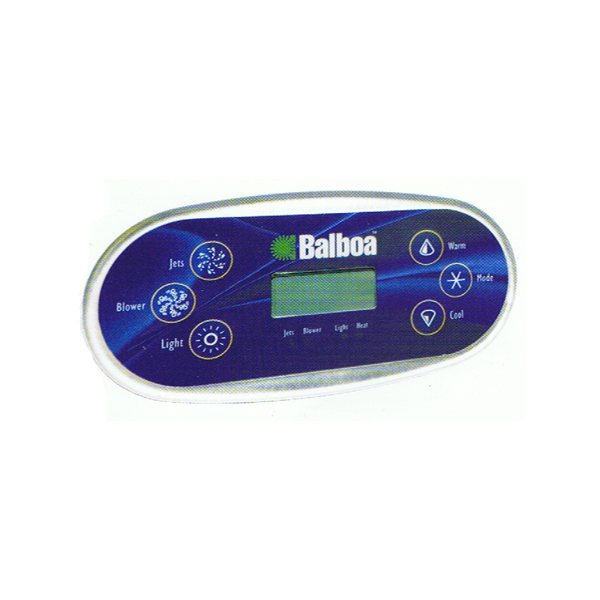

Balboa VL600S 1 pump with Air
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL600S |
| Power: | Volts: 12 |
| Compatible with: | GS501SZ, GS510S, GS510SZ, GS511SZ. Master Spas amongst others. |
| Button configuration: | Warm, Cool, Blower, Mode, Jets 1 and Light |
| Screen: | Serial Standard style - 4 large digits in horizontal line |
| Connections: | Telephone cord style |
| Dimensions: | 178mm x 86mm |
| Additional notes: |
Overlay included |

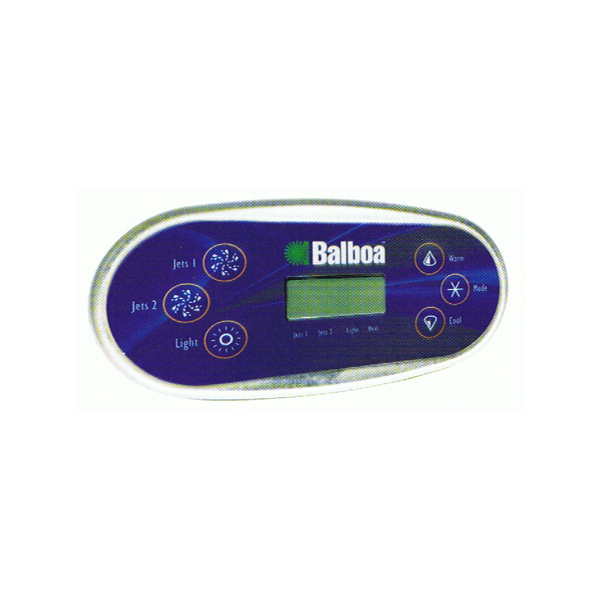

Balboa VL600S 2 pump with no Air
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL600S |
| Power: | Volts: 12 |
| Compatible with: | GS501SZ, GS510S, GS510SZ, GS511SZ. Master Spas amongst others. Hot Tubs: Passion Spas, Master Spa Legacy Whirlpool Series |
| Button configuration: | Warm, Cool, Mode, Jets 2, Jets 1 and Light |
| Screen: | Serial Standard style - 4 large digits in horizontal line |
| Connections: | Telephone cord style |
| Dimensions: | 178mm x 86mm |
| Additional notes: | Overlay included |

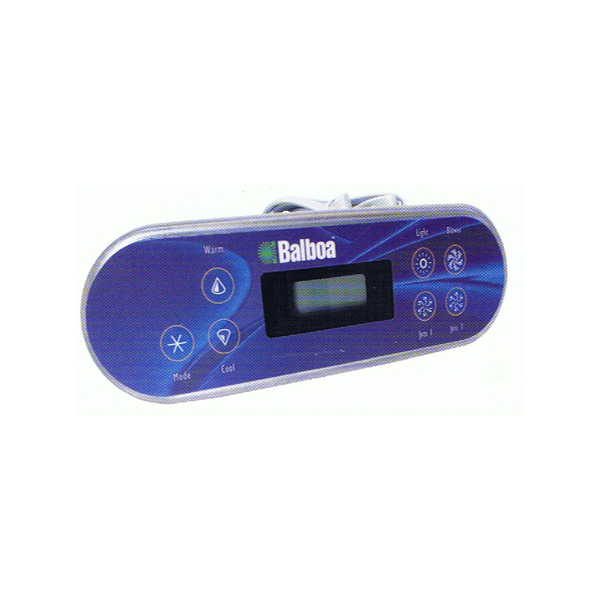

Balboa VL700S Touch panel
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL700S |
| Power: | Volts: 12 |
| Compatible with: | GS501SZ, GS510S, GS510SZ, GS511SZ, 2005 LE, M3TUV. Spaform Spas and more... |
| Button configuration: | Warm, Cool, Blower, Mode, Jets 1, Jets 2 and Light |
| Screen: | Serial Standard style - 4 large digits in horizontal line |
| Connections: | Telephone cord style |
| Dimensions: | 248mm x 79mm |
| Additional notes: | Overlay included |

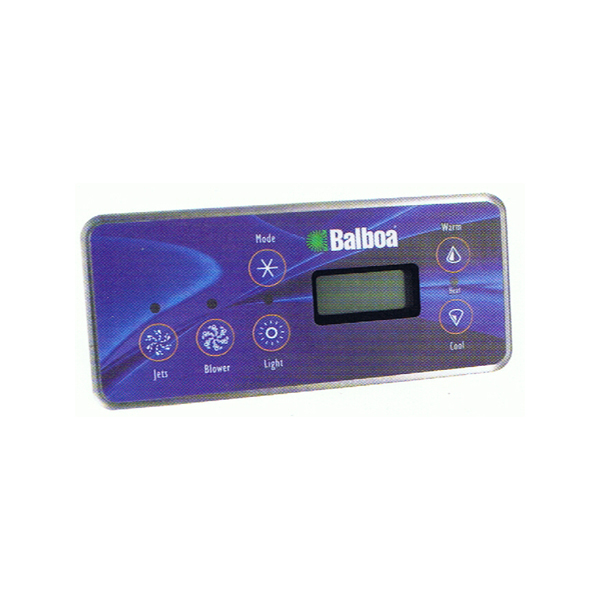

Balboa VL701S Touch Panel 1pump + Air V1
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL701S |
| Power: | Volts: 12 |
| Compatible with: | GS501SZ, GS510S, GS510SZ, GS511SZ, 2005 LE, M3TUV. |
| Button configuration: | Warm, Cool, Blower, Mode, Jets 1 and Light |
| Screen: | Serial Standard style - 4 large digits in horizontal line |
| Connections: | Telephone cord style |
| Dimensions: | 187mm x 83mm |
| Additional notes: | Overlay included |

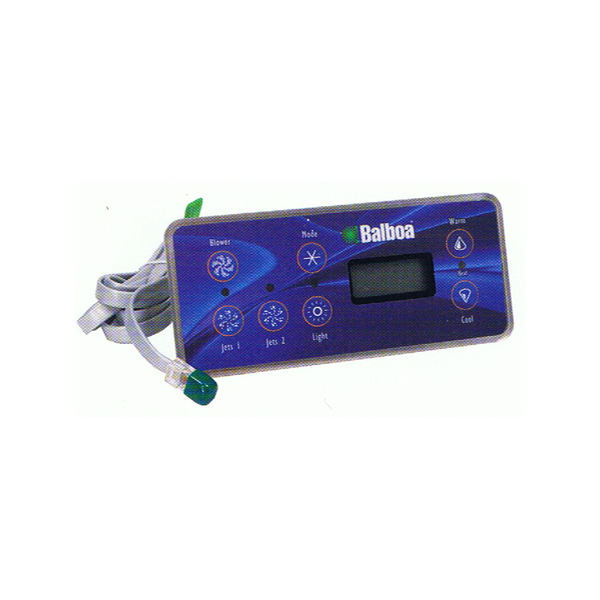

Balboa VL701S Touch Panel 2p with Air
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL701S |
| Power: | Volts: 12 |
| Compatible with: | GS501SZ, GS510S, GS510SZ, GS511SZ, 2005 LE, M3TUV. Spaform SF100, Hydropool, Canadian Spa, Beechcoomber, Catalina, Aegean, Hot Tubs Direct, Touch Spas and more... |
| Button configuration: | Warm, Cool, Blower, Mode, Jets 1, Jets 2 and Light |
| Screen: | Serial Standard style - 4 large digits in horizontal line |
| Connections: | Telephone cord style |
| Dimensions: | 187mm x 83mm |
| Additional notes: | Overlay included |

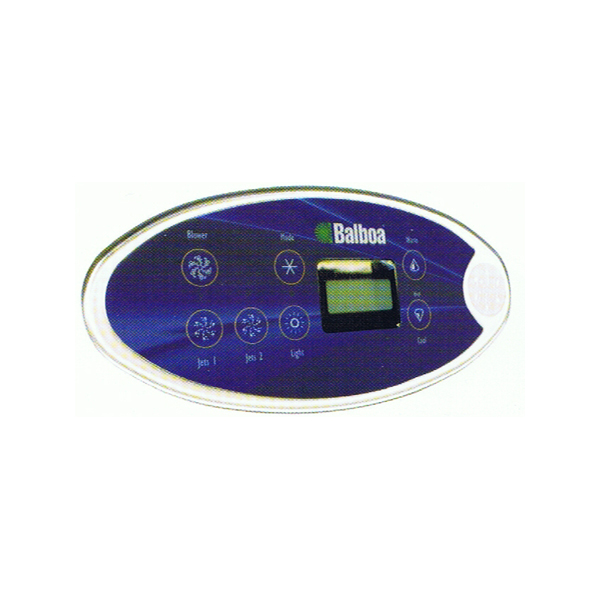

Balboa VL702S Touch Panel 2p with Air
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL702S |
| Power: | Volts: 12 |
| Compatible with: | GS501SZ, GS510S, GS510SZ, GS511SZ, 2005 LE, M3TUV and more. |
| Button configuration: | Warm, Cool, Blower, Mode, Jets 1, Jets 2, Light, Warm and Cool. |
| Screen: | Serial Standard style - 4 large digits in horizontal line |
| Connections: | Telephone cord style |
| Dimensions: |
265mm x 117mm |
| Additional notes: | Overlay included |

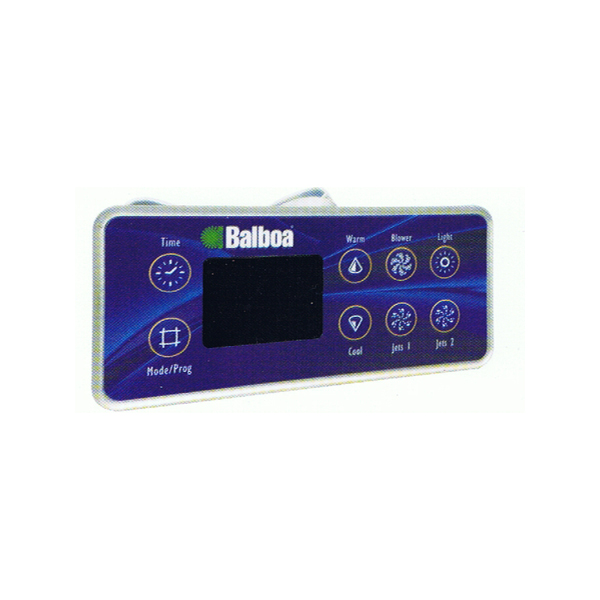

Balboa VL801D Touch Panel
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL801D |
| Power: | Volts: 12 |
| Compatible with: | GS501DZ, GS510DZ, GS511DZ, GS523DZ, M3TUV, Elite M7. Spaform SF273, Catalina, Hydrospa, Aegean, Hot Tubs Direct, Leisurerite, DIY tubs by Hindhead Hot Tubs and more... |
| Button configuration: | TIME, MODE, WARM, COOL, BLOWER, JETS 1, LIGHT and JETS 2. |
| Screen: | Hi-Tec LCD large face screen, component symbols displayed. Time functions and advanced error message display. |
| Connections: | Telephone cord style |
| Dimensions: |
187mm x 83mm |
| Additional notes: | Overlay included |

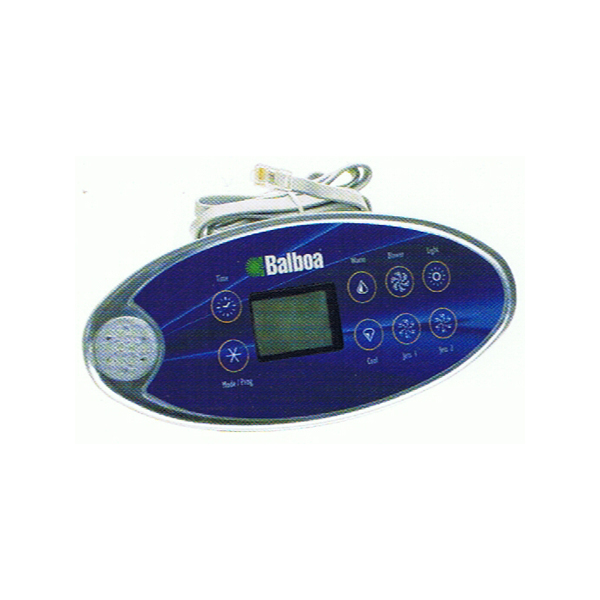

Balboa VL802D Touch Panel
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL802D |
| Power: | Volts: 12 |
| Compatible with: | GS501DZ, GS510DZ, GS511DZ, GS523DZ, M3TUV, Elite M7 and more. |
| Button configuration: | TIME, MODE/PROG, WARM, COOL, BLOWER, JETS 1, LIGHT and JETS 2. |
| Screen: | Hi-Tec LCD large face screen, component symbols displayed. Time functions and advanced error message display. |
| Connections: | Telephone cord style |
| Dimensions: |
265mm x 117mm |
| Additional notes: | Overlay included. This topside is ideal when trying to cover a large hole left by the original topside controller. |
| Products categories | Spas, Portable, Hot Tubs |
