Spaform Hot Tub Touch Panels
Hot Tub replacement Touch Panels are also known as Topside Controls or Touch Pads. The Hot Tub Touch Panel sends all the information to the Spa Control Box to operate the Hot Tub.
Full Description

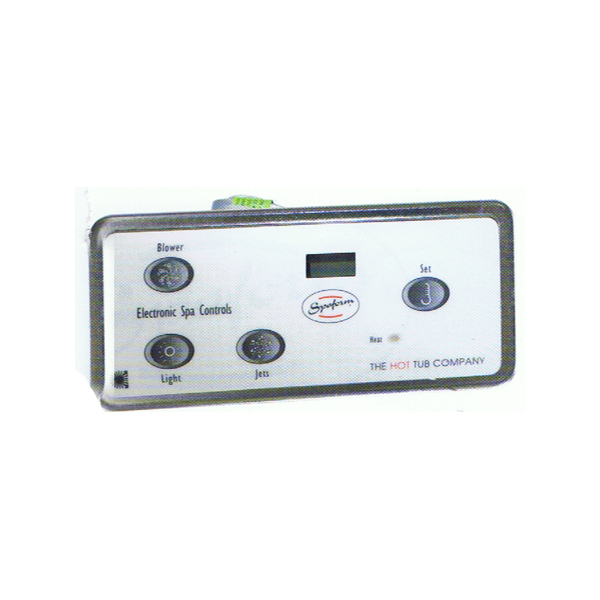

Balboa Digital Duplex Touch Panel (Spaform SF172)
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL402 (licensed Spaform SF172) |
| Power: | Volts: 12 |
| Compatible with: | Spaform SF172 control box |
| Button configuration: | SET / TEMP, BLOWER, JETS and LIGHT. |
| Screen: | LCD, basic 3 digit style |
| Connections: | Telephone cord style |
| Dimensions: | 187mm x 83mm |
| Additional notes: | Overlay included ( We now send generic blue overlays instead of white as pictured) |

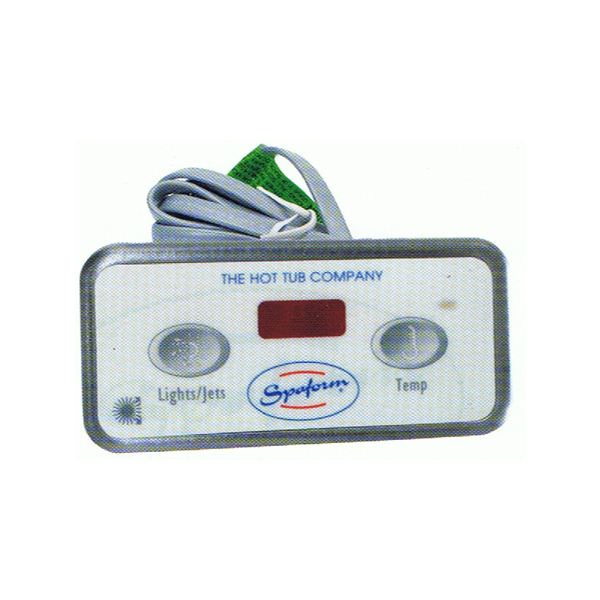

Balboa Lite Leader Touch Panel (Spaform SF050)
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa Lite Leader (licensed Spaform SF50) |
| Power: | Volts: 12 |
| Compatible with: | Spaform SF50 control box |
| Button configuration: | LIGHTS/JETS and TEMP |
| Connections: | Telephone cord style (half the size of the other panels) |
| Dimensions: | 115mm x 58mm |
| Additional notes: | Overlay included |

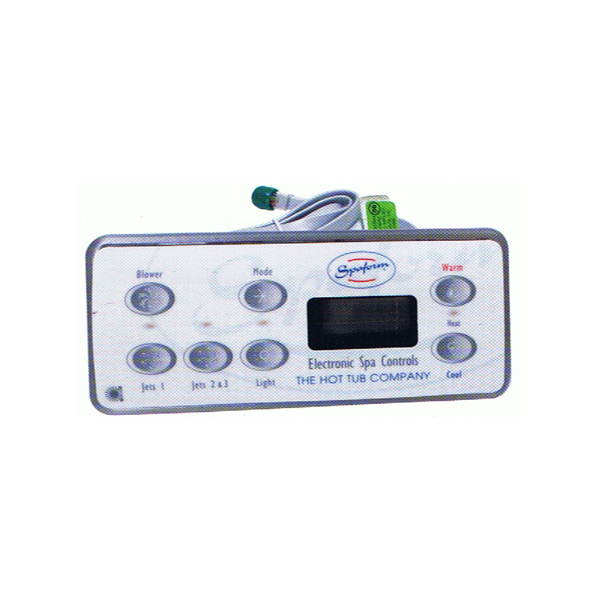

Balboa Standard Digital (Spaform SF100)
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL701S (licensed Spaform SF100) |
| Power: | Volts: 12 |
| Compatible with: | Spaform SF100 control box |
| Button configuration: | Warm, Cool, Blower, Mode, Jets 1, Jets 2 and Light |
| Screen: | Serial Standard style - 4 large digits in horizontal line |
| Connections: | Telephone cord style |
| Dimensions: | 187mm x 83mm |
| Additional notes: | Overlay included ( We now send generic blue overlays instead of white as pictured) |

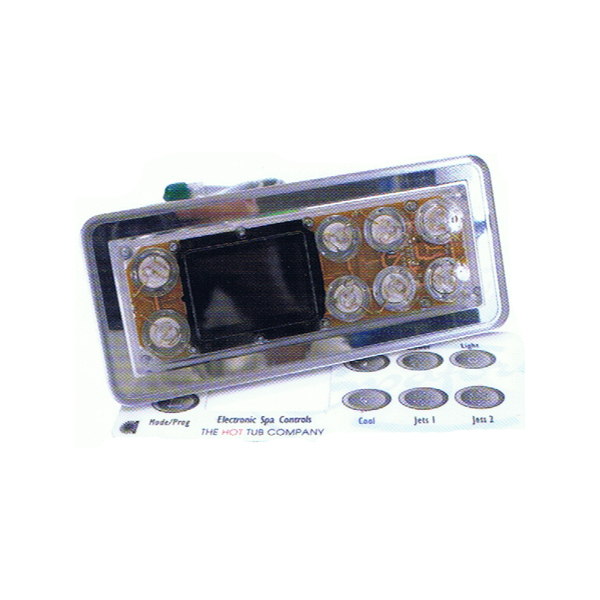

Balboa VL801D Touch Panel (Spaform SF273)
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa VL801D (licensed Spaform SF273) |
| Power: | Volts: 12 |
| Compatible with: | Spaform SF273 control box |
| Button configuration: | Time, Mode, Warn, Cool, Jets 1, Jets 2/3, Blower, Light |
| Connections: | Telephone cord style |
| Dimensions: | 187mm x 83mm |
| Additional notes: | 2 PUMP OVERLAY INCLUDED, IF YOUR SYSTEM HAS A 3 PUMP OVERLAY IT WILL STILL WORK, YOU WILL JUST NEED TO PRESS JETS 2 TWICE TO GET PUMP 3 ( WE NOW SEND BLUE GENERIC OVERLAYS INSTEAD OF THE WHITE ONE PICTURED) |
| Products categories | Spas, Hot Tubs, Portable |
