IPC Olympic Swimming Pool Enclosure

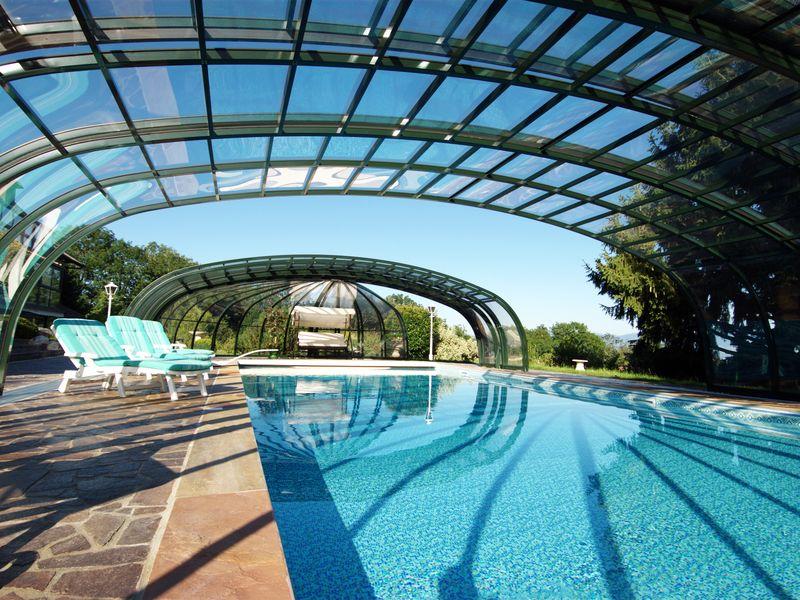

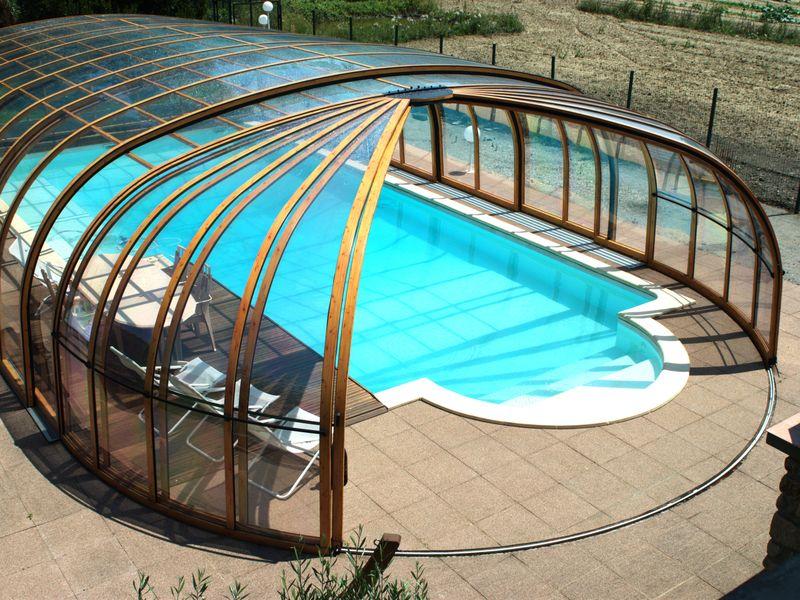

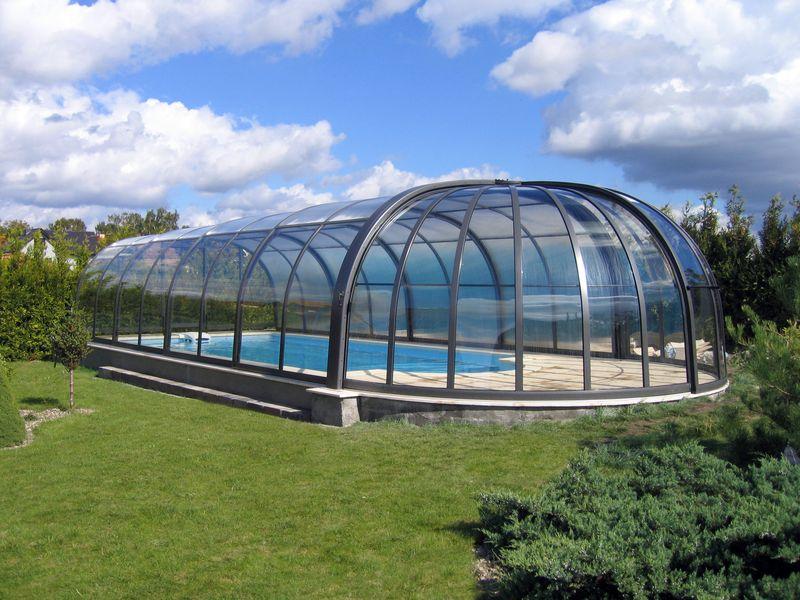

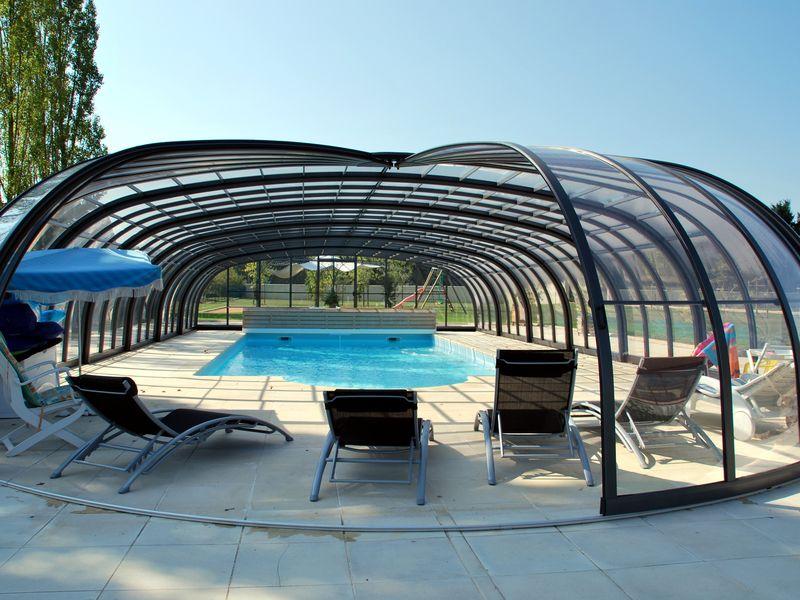

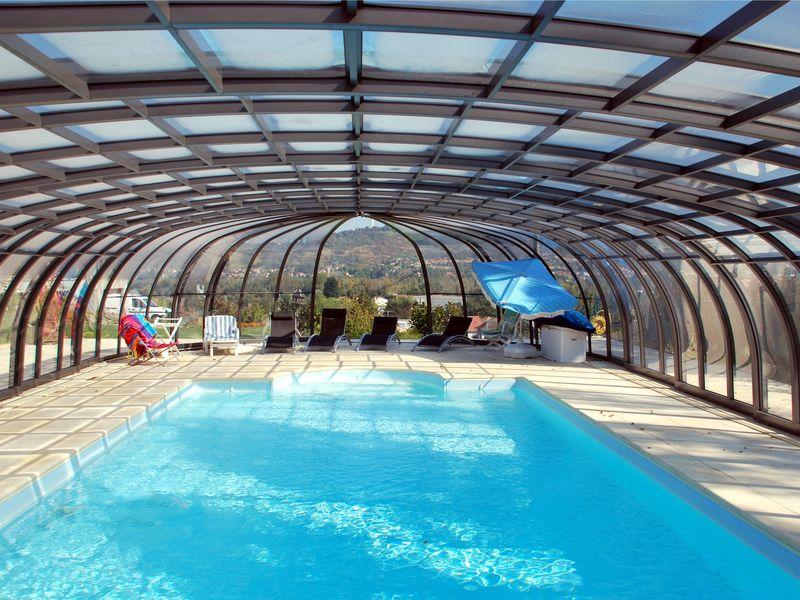

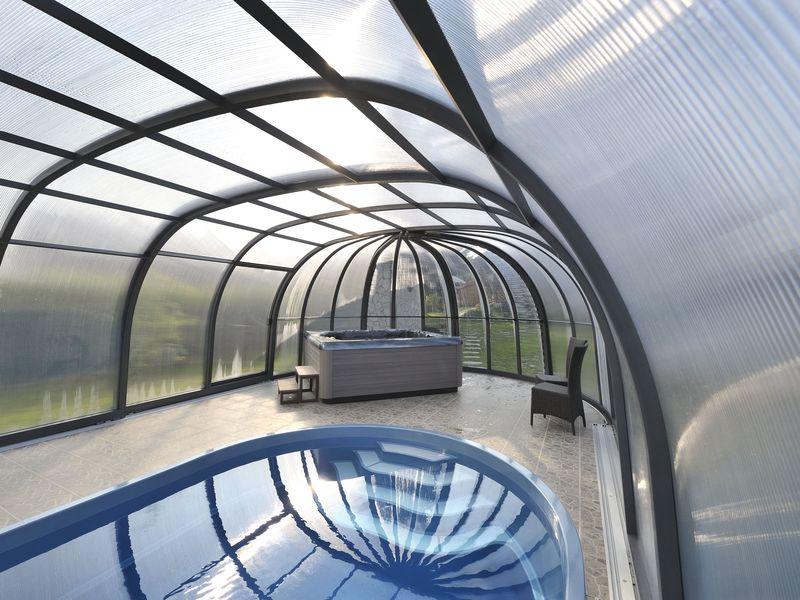

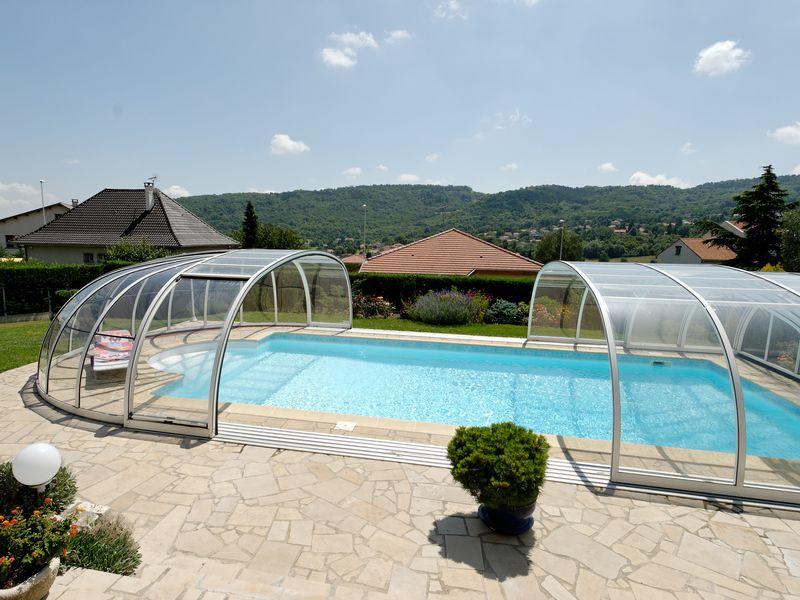

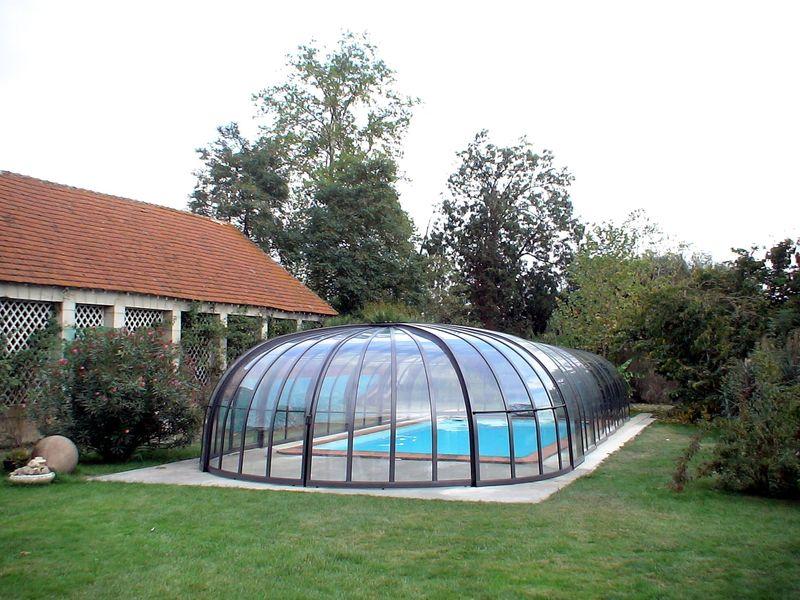

The premium enclosure - The Olympic, unique in both function and form. Its structure consists of 1 or 2 semi-domes (rounded parts). Its central (core) part is made up of classic enclosure segments. The primary benefit of this model is free movement under the entire roofed area.

Full Description

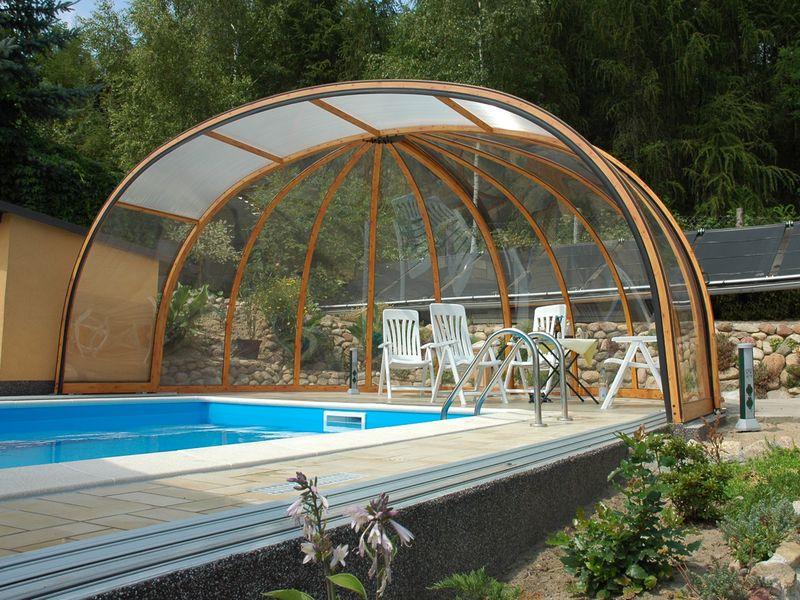

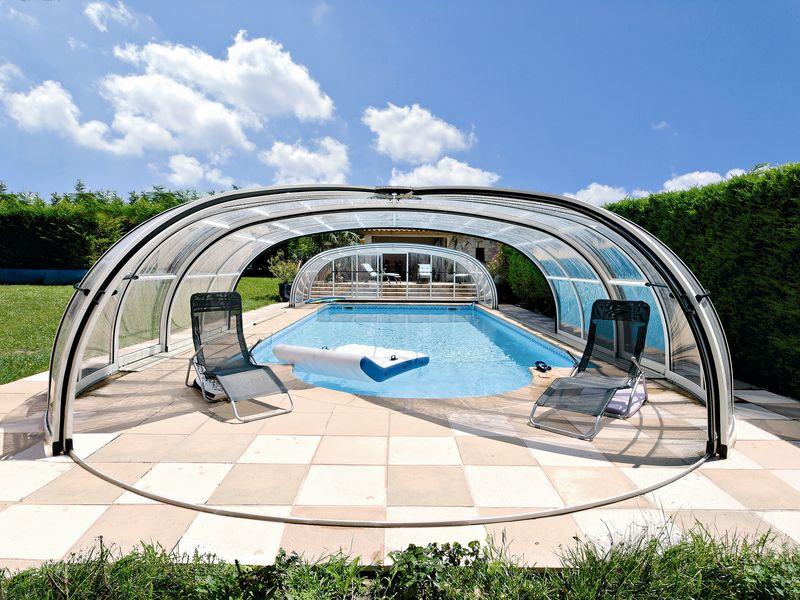

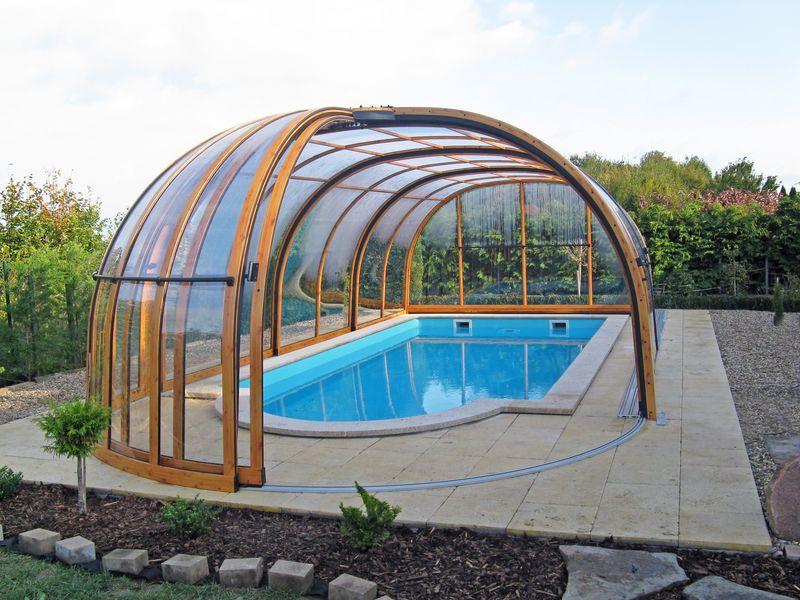

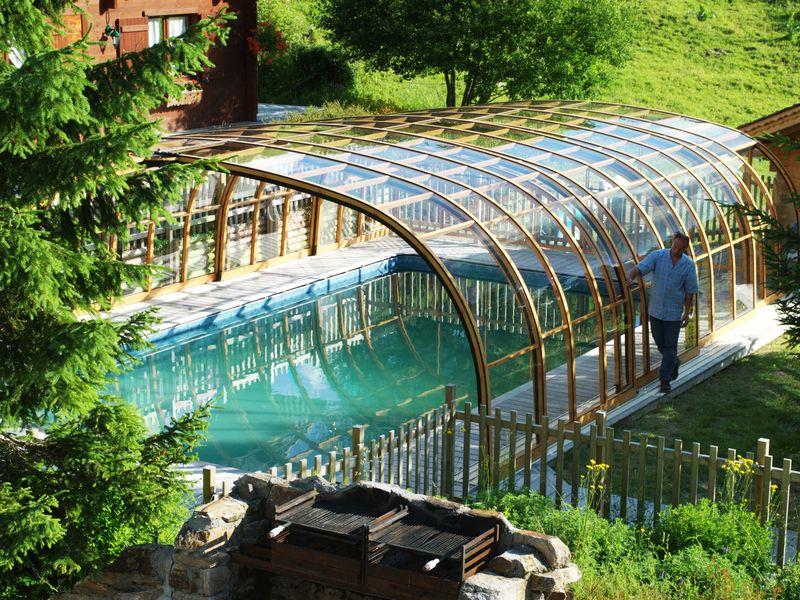

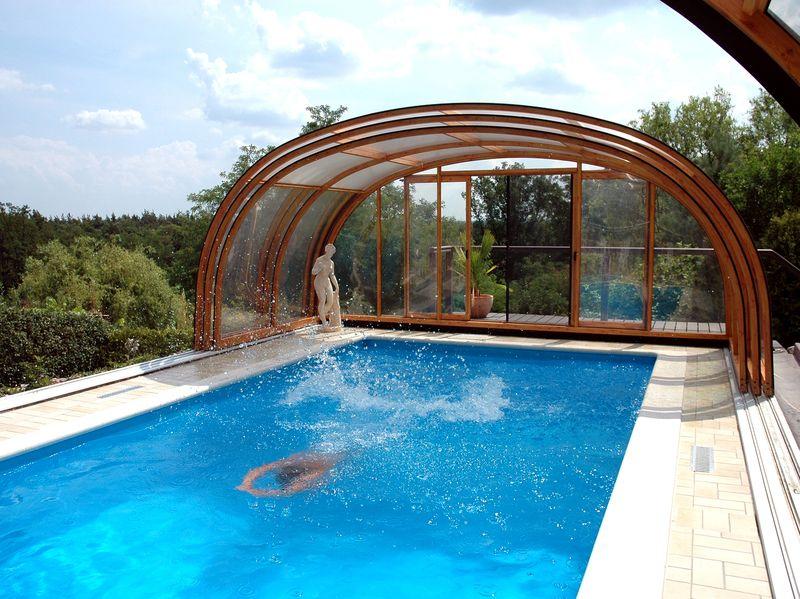

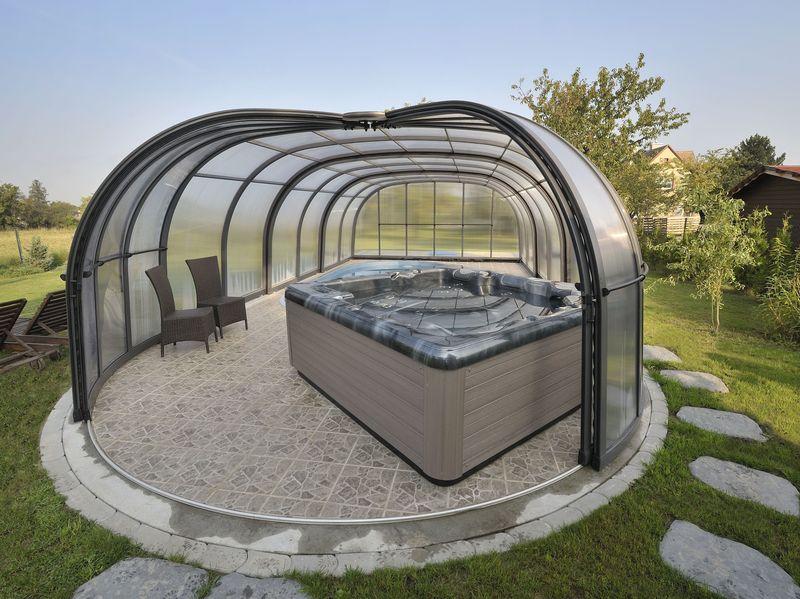

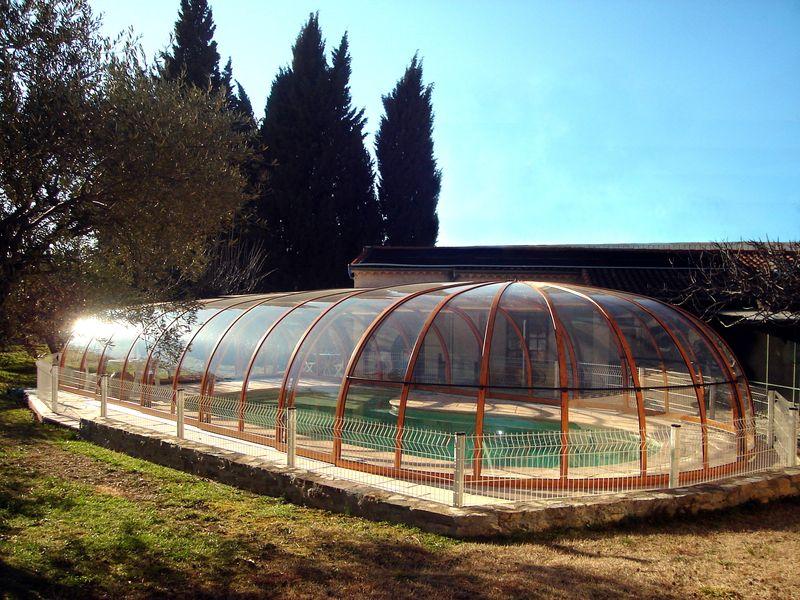

The guide system facilitates the sliding of the segments in both directions. Each semi-dome features a wide sliding entrance which opens from the middle to the right and left. The enclosure can be opened and closed by one or two persons (depending on the size of the structure). As an alternative, an electric motorized system can be installed. The aluminum profiles can bear a wood imitation finish, a feature that is particularly attractive when highlighting such a large enclosure.

Technical parameters

Width of enclosure:5,00 - 11,0 m
Length of enclosure:přes 3,5 m
Height of enclosure:2,60 – 3,00 m
Number of segments:> 2

Profile surfacing:
Silver RAL 9006	White RAL 9010	Beige RAL 1015	Anthracite DB 703	Brown antique

Polycarbonate:
		twin-wall, transparent, 8 mm, NO DROP, with one-side UV protection in the roof, U = 3,3 W/m² K

Guide rails
guide rails in the length of the respective segments of an enclosure
		PROGRES - height 15 mm, surfacing - natural elox or beige RAL 1015
		COMFORT - height 15 mm, with automatic anchoring system COMFORT, CATUS system included (surface natural elox C-0 silver or beige RAL 1015)

1 door according to the client´s request
round part 1pc by the biggest segment double movable part of the round part, opening from the middle to the edges
movable segments - length between 2000 - 2550mm
