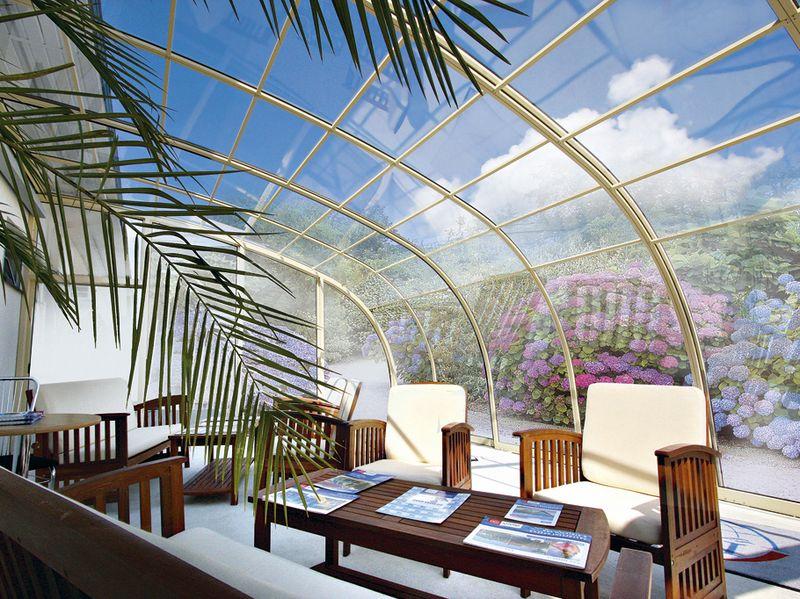

144 veranda 01 800x600

IPC Veranda Neo Enclosure

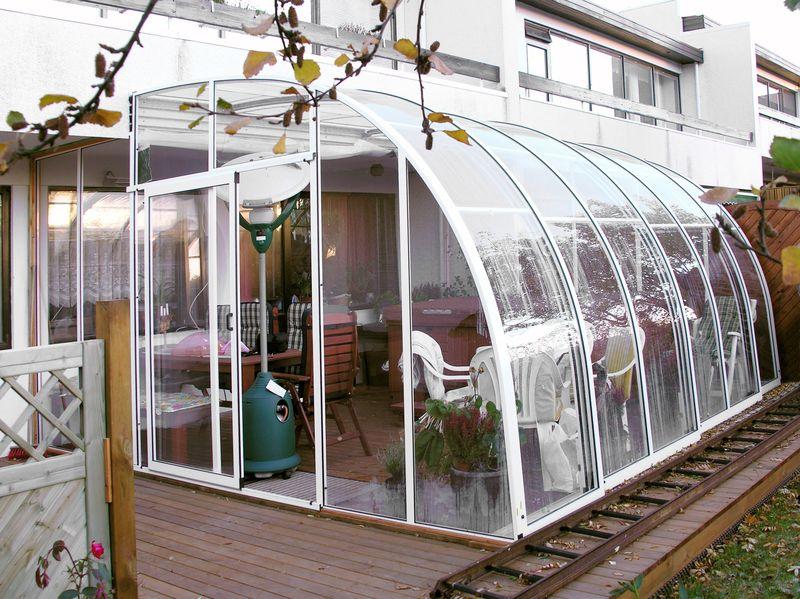

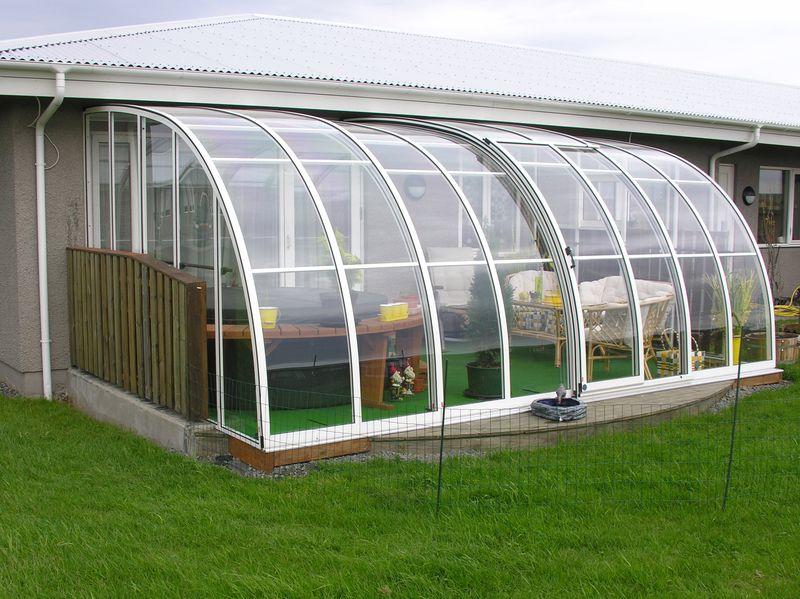

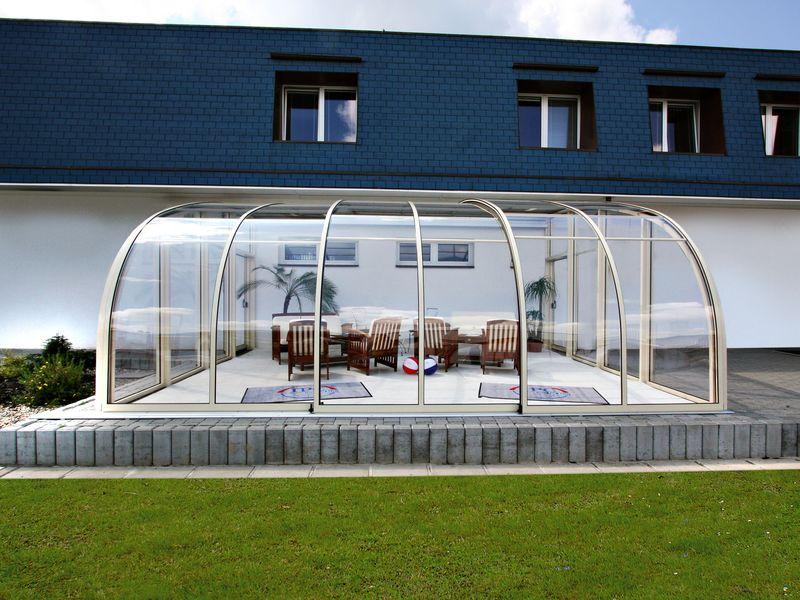

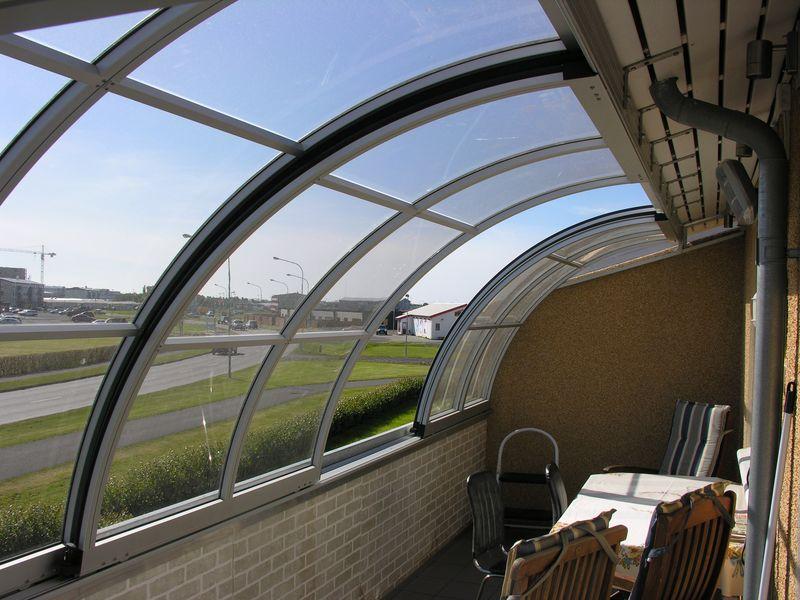

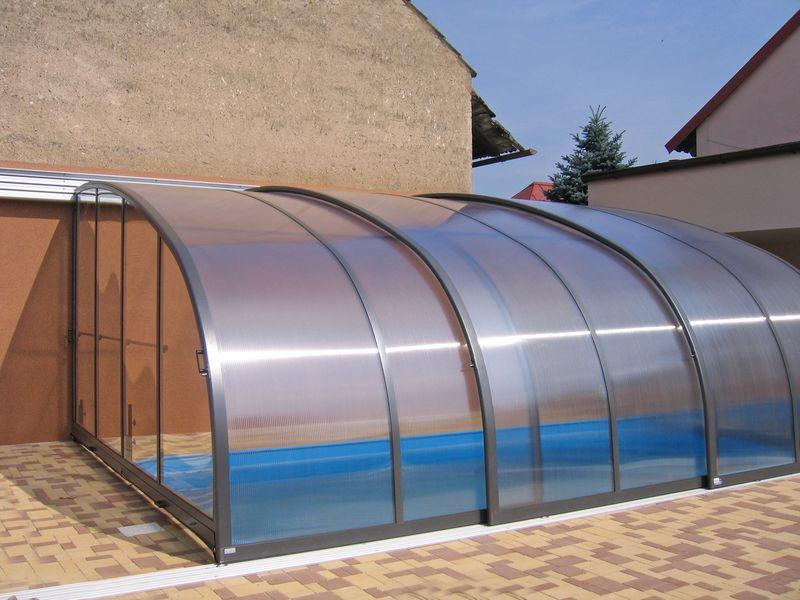

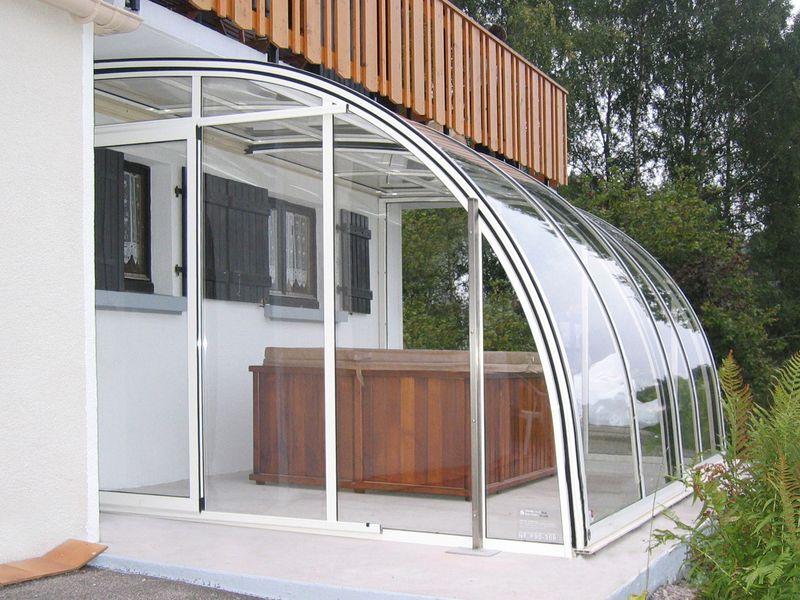

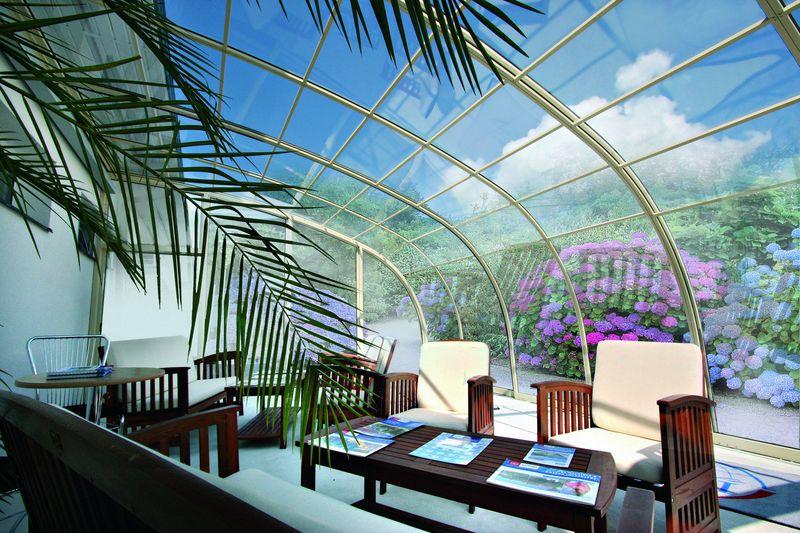

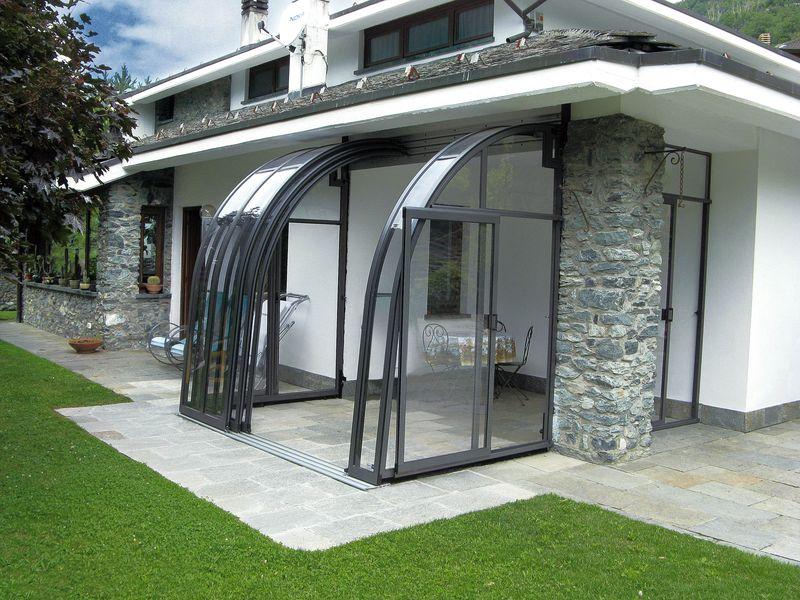

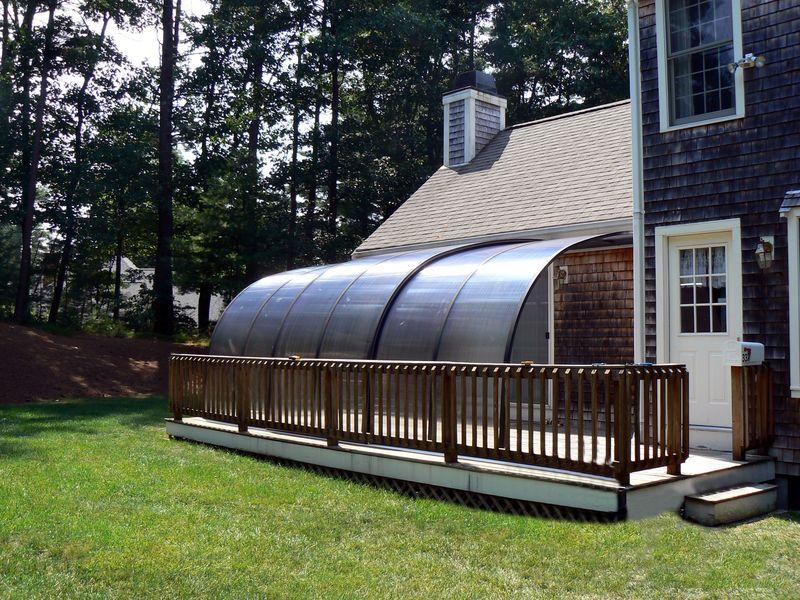

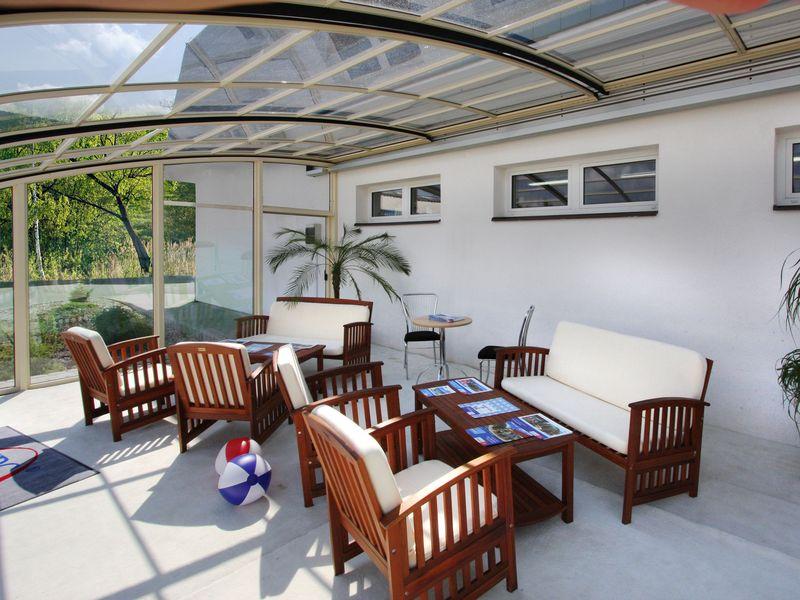

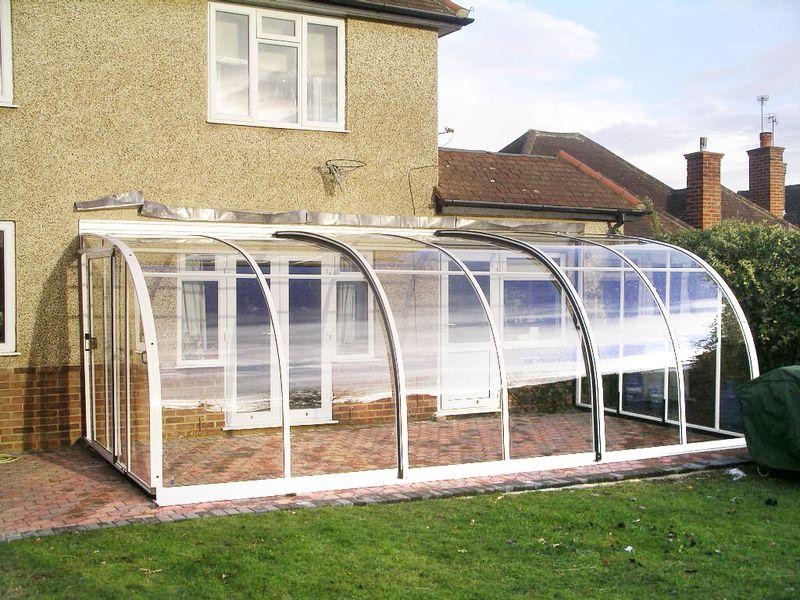

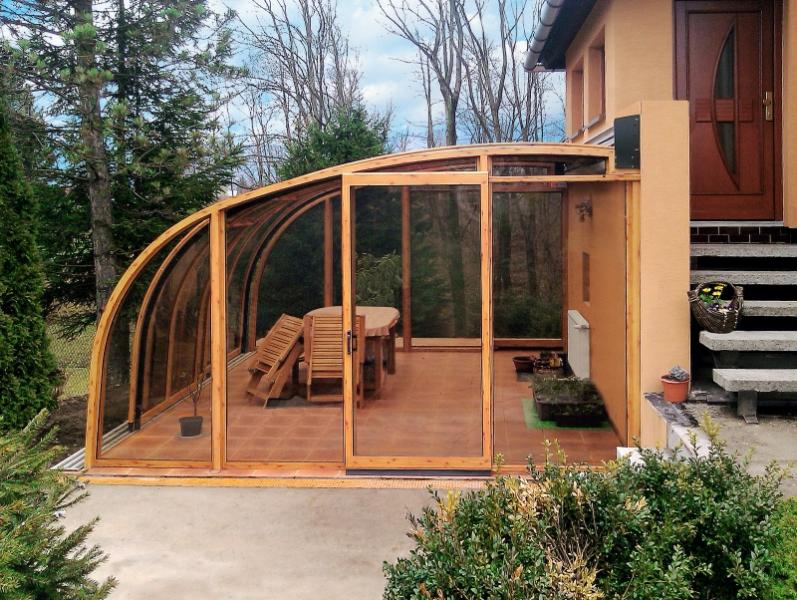

As the name implies, the VERANDA NEO™  model is designed for enclosing garden and roof terraces directly linked to the building's architecture, as well as balconies and loggia, and thus forms a peaceful oasis of relaxation and extends the living space of a house or an apartment.

Full Description

 This model excels in modern organic design. The structure is flexible and can be adapted to any shape of enclosed area, as well as to various placement heights of window sills, railings and to the height of the wall itself. The possibility of opening the unit to a maximum degree is a basic premise. Use of the model reduces heating costs and enhances the building's thermal insulation qualities.

Technical parameters

  • Width of enclosure:3,00 - 4,50 m
  • Length of enclosure:4,20 - 10,60 m
  • Height of enclosure:2,50 - 2,74 m
  • Number of segments:2 - 5

Profile surfacing:

Silver
elox C-0 (silver)RAL 9006
White
white RAL 9010RAL 9010
Beige
beige RAL 1015RAL 1015
Anthracite
anthracite DB 703DB 703
Brown
brown - antiqueantique
Rounded-off segments.

Polycarbonate:

jednokomorový, čirý, 10 mm, NO DROP, s jednostrannou UV stabilizací, U = 3,1 W/m2K twin-wall, transparent, 10 mm, NO DROP, with one-side UV protection U = 3,1 W/m2K
kompaktní polykarbonát, tl. 4 mm, čirý, s oboustrannou UV stabilizací U = 5,4 W/m² K compact, transparent, 4 mm, with both-sides UV protection,
U = 5,4 W/m2K

Guide rails:

guide rails in the full length of an enclosure
KOMFORT - výška 15 mm

COMFORT - height 15 mm, surfacing - natural elox or beige RAL 1015

  VERANDA - surfacing - natural elox or beige RAL 1015 or anthracite DB 703
  • the front face inner, fixed made from polycarbonate and aluminium profiles
  • 1 pcs of door according to the client´s request
  • Lockable handle or hand rail
  • EASY UP - upper-ground locking system
