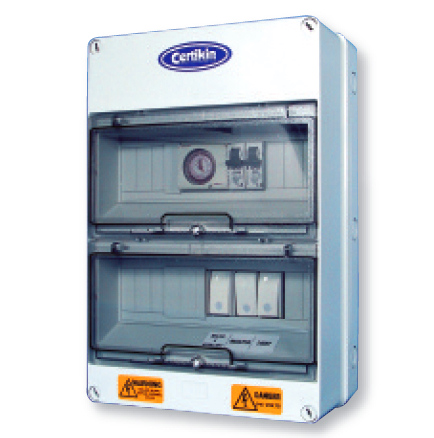

Pool & Spa Control Panels
The Certikin pool control panels offer an off-the-shelf, cost effective solution for pool plant control for any heater type.
Full Description
CCP01 Control Panel Features:
- MCB circuit breaker protection
- Fully wired IP55 enclosure
- Timed control of:
- gas or oil pool heater
- pool pump (single phase , max 50 amps)
- 1 x voltage free circuit
- Switched pool lights circuit
- Conforms to IEE regulations
CCP03 Control Panel Features:
- MCB circuit breaker protection
- Fully wired IP55 enclosure
- Timed control of:
- electric heater (single phase, max 50 amps)
- pool pump (single phase 16amp)
- 1 x voltage free circuit
- pool lights
- Conforms to IEE regulations
- Handy Hint: Certikin recommend the use of a pump overrun timer to protect heating equipment (not supplied)
Spa Control Panel Features:
- 10 minute timer on boost pump and air blower.
- Domestic panels contain a 2 pole air switch to work with ITT pumps with the latest EMG motors to change between high and low speed.
Note: Automatic Purging Timer
This unit can be fitted to all spa packs made since 1996. It will operate all pumps and blowers once every 24 hours irrespective of timer lock position.
Please Note: CCP01 and CCP03 do NOT comply with Amendment 3 to BS7671: 2008 (IET Wiring Regulations 17th Edition), regarding non-combustable enclosures for consumer units in domestic premises.
If this unit is intended to be installed within a domestic premises, then it must be enclosed in a cabinet or enclosure constructed of non-com-bustible material and comply with Regulations 421.2.201 and 132.12.
