Side mount liner lock

Linerlock

Use Linerlock for liner installations. Under copings or screw directly into the top edge of the wall. Linerlock will make fitting the liner really straightforward!

Also available liner lock coping strips for use on above ground pool overlap liner installations.

Full Description

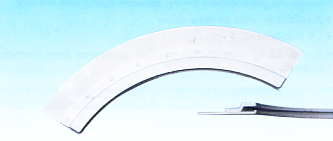

Liner Lock Corner

  • For rounded corners between 140-165mm radius
  • Secure using four fixings spaced at approx 90mm

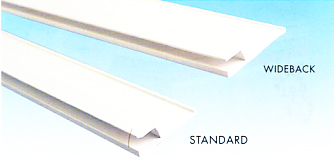

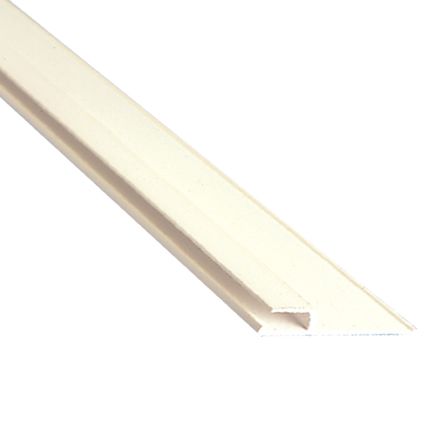

Wideback Linerlock

  • High impact PVC cut into 3m lengths
  • Compatible with most beaded liners
  • Wideback Linerlock for block and liner and panel  pools (51mm)

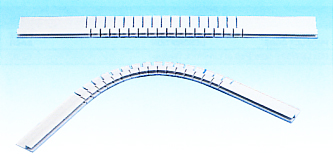

  • Multicut Corner (500mm x 51mm)

Note: Ensure the linerlock is fully supported where applicable and not compressed by coping stones.

Fixings for  Wideback Linerlock should be between 20cm and 30cm apart

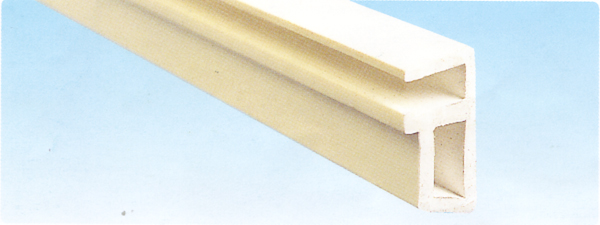

Side Mount Linerlock

  • Fixings should be place at 150mm (depending on strength of wall)

ALSO LINER LOCK FOR ABOVE GROUND POOLS



Also available Liner lock coping strips for use on above ground pool over lap liner installations approximately 4ft long per strip





Liner lock CornerStandard and wideback liner lockMulti Cut Corner liner lock
