Chinese Hot Tub Heaters
These Hot Tub Heaters are commonly used on Chinese Hot Tubs.
Full Description

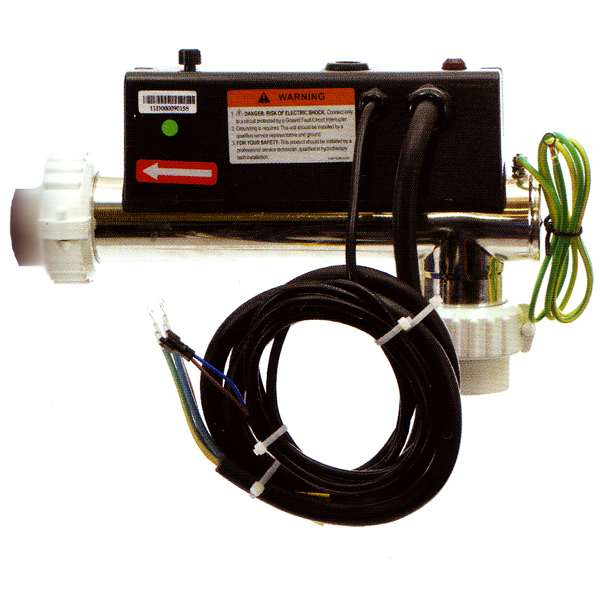

Chinese Style 3.0KW 1.5 inch heater (L-Shape)
| Type of product: | Heater assembly |
| Make and Model: | Chinese LX Whirlpool Bath (L-Shape). H30-R2 |
| Power: | Volts: 230 Hz: 50 KW: 3.0 Amps: 13.6 |
| Specification | Sensor compatibility: Controlled by the system control box Material spec: Required flow rate: Set by pressure switch, this switch will need to be pressurised, if it runs straight to a big bore out let with no bends, there will be no back pressure and it may not work Flow detection: Pressure switch built in to the heater run on a separate cord |
| Compatible with: | Most Chinese spas with a small plumbing change or can be used as a remote heater on a bespoke project |
| Connections / Fixings: | 1.5" white plastic female sockets to connect to plumbing |
| Dimensions: | Heater length: Heater Diameter: 50mm Overall height: Overall length complete: |
| Additional notes: | This unit replaces the Rooster heater as they kept failing. This heater is longer than the Rooster so you may need to alter the plumbing slightly |

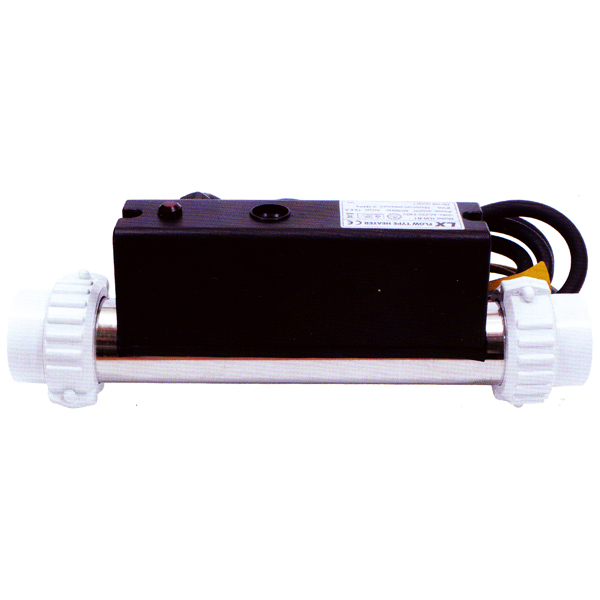

Chinese Style 3.0KW 1.5 inch heater (Straight)
| Type of product: | Heater assembly |
| Make and Model: | Chinese LX Whirlpool Bath. H30-R1 |
| Power: | Volts: 230 Hz: 50 KW: 3.0 Amps: 13.6 |
| Specification | Sensor compatibility: Controlled by the system control box Material spec: Required flow rate: Set by pressure switch, this switch will need to be pressurised, if it runs straight to a big bore out let with no bends, there will be no back pressure and it may not work Flow detection: Pressure switch built in to the heater run on a separate cord |
| Compatible with: | Most Chinese spas with a small plumbing change or can be used as a remote heater on a bespoke project |
| Connections / Fixings: | 1.5" white plastic female sockets to connect to plumbing |
| Dimensions: | Heater length: Heater Diameter: 50mm Overall height: 120mm Overall length complete: 340mm |
| Additional notes: | This unit replaces the Rooster heater as they kept failing. This heater is longer than the Rooster so you may need to alter the plumbing slightly High limit thermal cut out built in. This unit is rated IPX5 and has CE approval. |

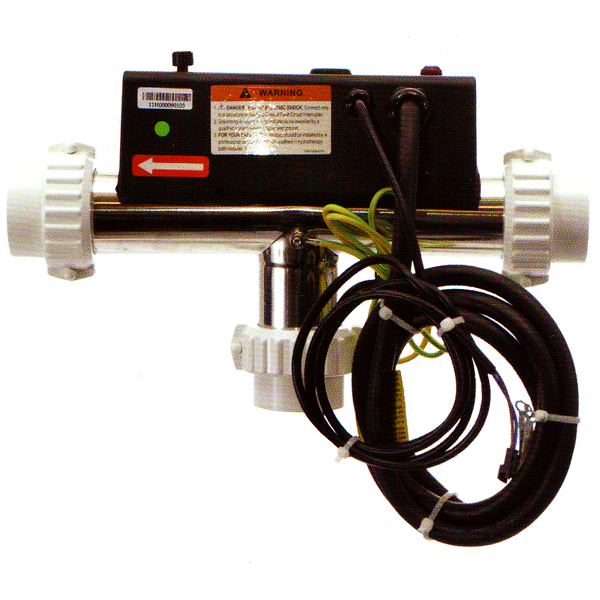

Chinese Style 3.0KW 1.5 inch heater (T-Shape)
| Type of product: | Heater assembly |
| Make and Model: | Chinese LX Whirlpool Bath (L-Shape). H30-R3 |
| Power: | Volts: 230 Hz: 50 KW: 3.0 Amps: 13.6 |
| Specification | Sensor compatibility: Controlled by the system control box Material spec: Required flow rate: Set by pressure switch, this switch will need to be pressurised, if it runs straight to a big bore out let with no bends, there will be no back pressure and it may not work Flow detection: Pressure switch built in to the heater run on a separate cord |
| Compatible with: | Most Chinese spas with a small plumbing change or can be used as a remote heater on a bespoke project |
| Connections / Fixings: | 1.5" white plastic female sockets to connect to plumbing |
| Dimensions: | Heater length: 250mm Heater Diameter: 50mm (internal) Overall height: 200mm (inc unions) Overall length complete: 340mm (inc unions) |
| Additional notes: | This unit replaces the Rooster heater as they kept failing. This heater is longer than the Rooster so you may need to alter the plumbing slightly |
