Heater Hot Tub Elements
If you can't find what you need, send us an email: sales@dolphinpools.co.uk
PLEASE NOTE THAT THE 1.5KW HALF STYLE ELEMENT IS DISCONTINUED.
Full Description

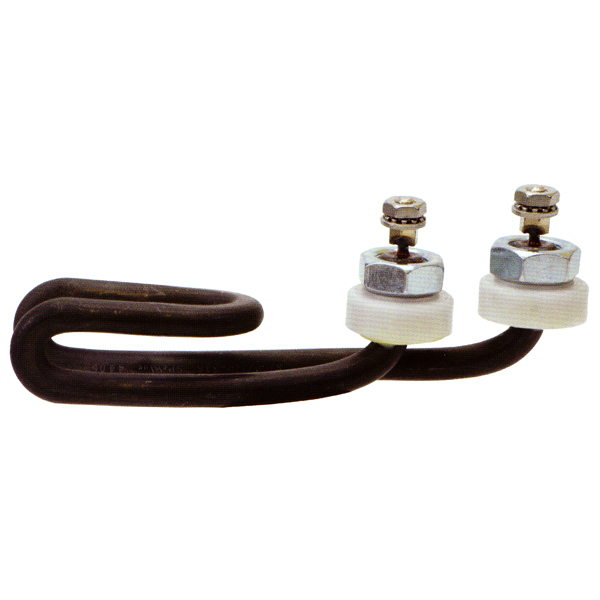

1.5KW Half Style Element
| Type of product: | Heater element half style |
| Power: | Volts: 230 Hz: 50 KW: 1.5 Amps: 6.0 |
| Compatible with: | Aquatemp, Thermcore and Balboa amongst others. We have used this element with Hot Tubs such as Saratoga, Voyager and more |
| Connections / Fixings: | 19mm nut x2 to secure element in place |
| Dimensions: | Element length: 120mm Element height (approx):50mm Between centre of terminals:33mm |
| Additional notes: | The element could possibly burn out or become damaged if the heater tube is not primed with water before the unit is switched on. |
2.0KW Half Style Element
| Type of product: | Heater element half style |
| Power: | Volts: 230 Hz: 50 KW: 2.0 Amps: 8.0-8.5 |
| Compatible with: | Aquatemp, Thermcore and Balboa amongst others. We have used this element with Hot Tubs such as Saratoga, Voyager and more |
| Connections / Fixings: | 19mm nut x2 to secure element in place |
| Dimensions: | Element length: 120mm Element height (approx):50mm Between centre of terminals:33mm |
| Additional notes: | The element could possibly burn out or become damaged if the heater tube is not primed with water before the unit is switched on. |

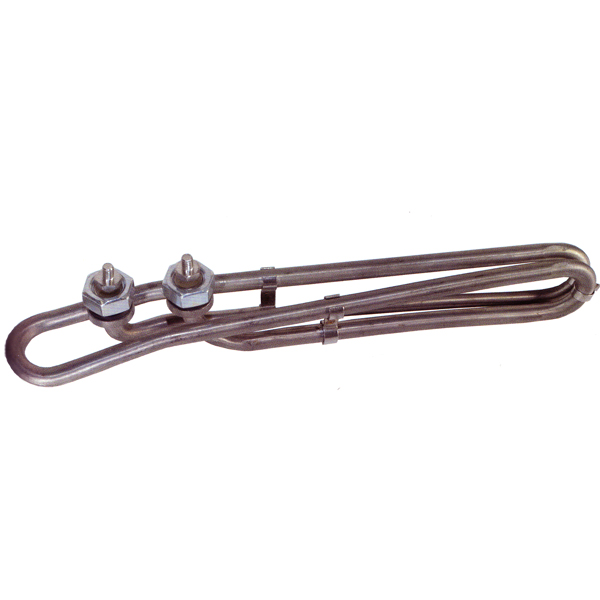

2.0KW Heater Element
| Type of product: | Heater element |
| Power: | Volts: 230 Hz: 50 KW: 2.0 Amps: 8.0-8.5 |
| Compatible with: | Can be used as a replacement element for Balboa, HydroQuip, Gecko, Thermcore, Aquatemp, RMF, Spa Builders, Brett Aqualine |
| Connections / Fixings: | 19mm nut x2 to secure element in place |
| Dimensions: | Element length: 270mm Element height (approx):60mm Between centre of terminals:33mm |
| Additional notes: | The element could possibly burn out or become damaged if the heater tube is not primed with water before the unit is switched on. Although this element will fit the heater tubes of the above manufacturers it is not manufactured by any of the above, it is sold as a replacement only. |
2.5KW Heater Element
| Type of product: | Heater element |
| Power: | Volts: 230 Hz: 50 KW: 2.5 Amps: 10-11 |
| Compatible with: | Can be used as a replacement element for Balboa, HydroQuip, Gecko, Thermcore, Aquatemp, RMF, Spa Builders, Brett Aqualine |
| Connections / Fixings: | 19mm nut x2 to secure element in place |
| Dimensions: | Element length: 270mm Element height (approx):60mm Between centre of terminals:33mm |
| Additional notes: | The element could possibly burn out or become damaged if the heater tube is not primed with water before the unit is switched on. Although this element will fit the heater tubes of the above manufacturers it is not manufactured by any of the above, it is sold as a replacement only. |
3.0KW Heater Element
| Type of product: | Heater element |
| Power: | Volts: 230 Hz: 50 KW: 3.0 Amps: 11.5-12.0 |
| Compatible with: | Can be used as a replacement element for Balboa, HydroQuip, Gecko, Thermcore, Aquatemp, RMF, Spa Builders, Brett Aqualine |
| Connections / Fixings: | 19mm nut x2 to secure element in place |
| Dimensions: | Element length: 270mm Element height (approx):60mm Between centre of terminals:33mm |
| Additional notes: | The element could possibly burn out or become damaged if the heater tube is not primed with water before the unit is switched on. Although this element will fit the heater tubes of the above manufacturers it is not manufactured by any of the above, it is sold as a replacement only. |
4.0KW Heater Element
| Type of product: | Heater element |
| Power: | Volts: 230 Hz: 50 KW: 4.0 Amps: 15-16 |
| Compatible with: | Can be used as a replacement element for Balboa, HydroQuip, Gecko, Thermcore, Aquatemp, RMF, Spa Builders, Brett Aqualine etc |
| Connections / Fixings: | 19mm nut x2 to secure element in place |
| Dimensions: | Element length: 270mm Element height (approx):60mm Between centre of terminals:33mm |
| Additional notes: | The element could possibly burn out or become damaged if the heater tube is not primed with water before the unit is switched on. Although this element will fit the heater tubes of the above manufacturers it is not manufactured by any of the above, it is sold as a replacement only. |
| Products categories | Spas, Hot Tubs, Portable |
