Balboa AX10 A1 Aux Control  Jets 1

Balboa Auxilary Hot Tub Touch Panels

These Hot Tub Touch Panels are also known as Topside Control or Touch Pad. The Hot Tub Touch Panel sends the information to the Spa Control Box to operate the Hot Tub.

Full Description

Balboa AX10-A1 Aux Control (Jets 1)

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX10 - A1
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Jets 1
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 54mm, Hole size = 32mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included



Balboa AX10-A2 Aux Control (Jets 2)

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX10 - A2
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Jets 2
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 54mm, Hole size = 32mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included



Balboa AX10-A3 Aux Control (Blower)

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX10 - A3
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Blower
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 54mm, Hole size = 32mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included



Balboa AX10-A4 Aux Control (Light)

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX10 - A4
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Light
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 54mm, Hole size = 32mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included

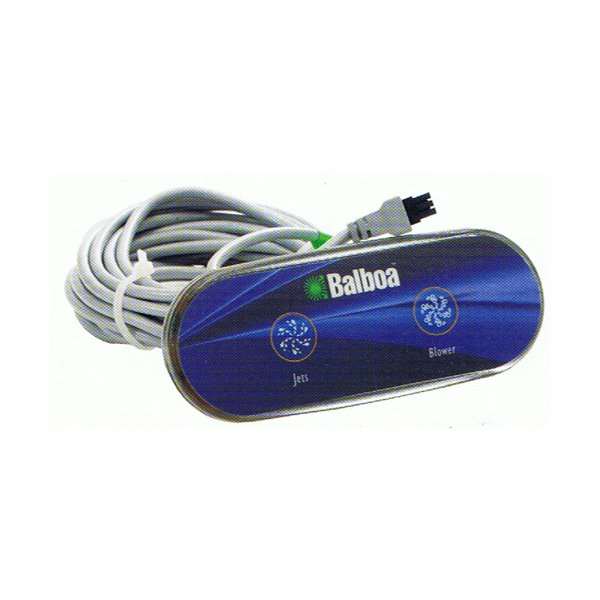

Balboa AX20 Aux Control (Jets 1 and Blower)

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX20 - Jets1 & Blower
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Jets 1 & Blower
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 150mm, Hole size = 89mm x 31mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included

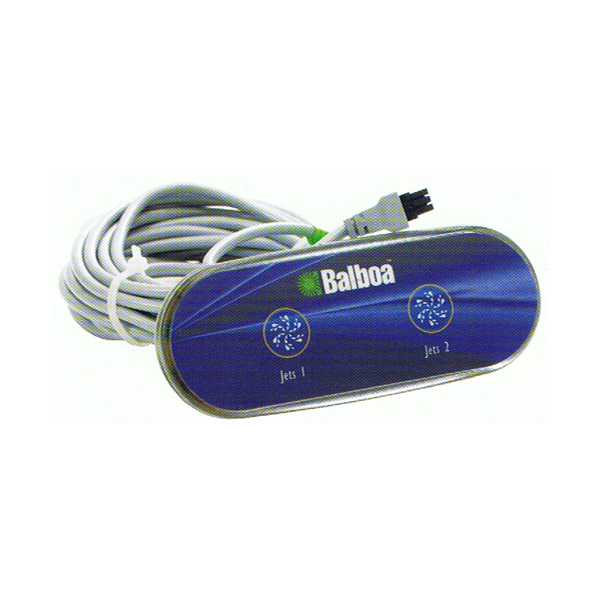

Balboa AX20 Aux Control (Jets 1 and Jets 2)

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX20 - Jets1 & Jets 2
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Jets 1 & Jets 2
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 150mm, Hole size = 89mm x 31mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included

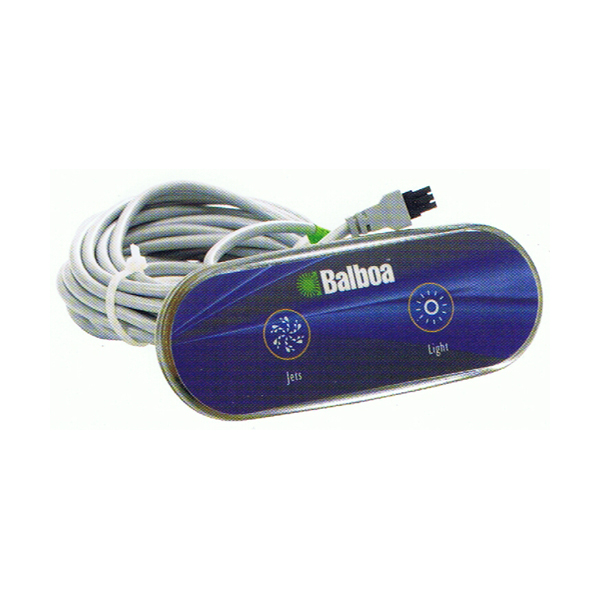

Balboa AX20 Aux Control (Jets 1 and Light)

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX20 - Jets1 & Light
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Jets 1 & Light
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 150mm, Hole size = 89mm x 31mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included



Balboa AX30 Aux Control (Jets 1, Jets 2 and Blower) - Discontinued

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX30 - Jets1, Jets 2 & Blower
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Jets1, Jets 2 & Blower
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 193mm, Hole size = 135mm x 33mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included

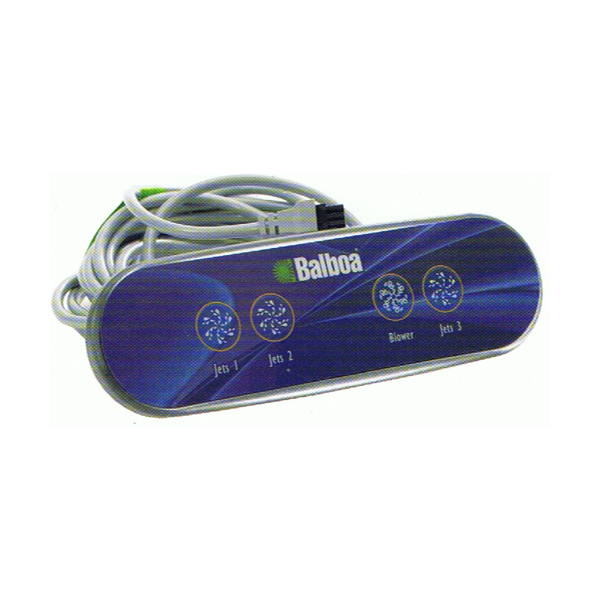

Balboa AX40 Aux Control (Jets 1, Jets 2, Blower and Jets 3)

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX40 - Jets1, Jets 2, Blower & Jets 3
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Jets1, Jets 2, Blower & Jets 3
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 193mm, Hole size = 135mm x 33mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included



Balboa AX40 Aux Control (Jets 1, Jets 2, Blower and Light)

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX40 - Jets1, Jets 2, Blower & Light
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Jets1, Jets 2, Blower & Light
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 193mm, Hole size = 135mm x 33mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included

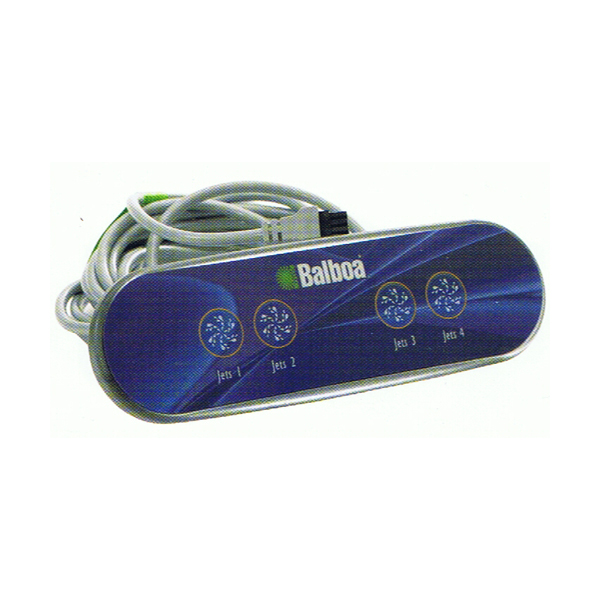

Balboa AX40 Aux Control (Jets 1, Jets 2, Jets 3 and Jets 4)

Type of product: Auxiliary topside control, touch panel or touch pad
Make and Model: Balboa AX40 - Jets1, Jets 2, Jets 3 & Jets 4
Power: Volts: 12
Compatible with: All GL Systems, GL2000, GL8000 etc
Button configuration: Jets1, Jets 2, Jets 3 & Jets 4
Screen: N/A
Connections: 6 small plastic pins, 2 rows of 3
Dimensions:

Diameter = 193mm, Hole size = 135mm x 33mm, Cable length = 5m

Additional notes:

This part is used as an additional control to be placed away from the main controls. This is ideal for larger Hot Tubs and is ideally used to control areas of the Hot Tub or Spa it is situated next to. The plug fits on to any port with the 6 pin slot connection on the PCB.

Overlay included
