Balboa ML Hot Tub Panels
These Hot Tub Touch Panels are also known as Topside Control or Touch Pad. The Hot Tub Touch Panel sends all the information to the Spa Control Box to operate the Hot Tub.
Full Description

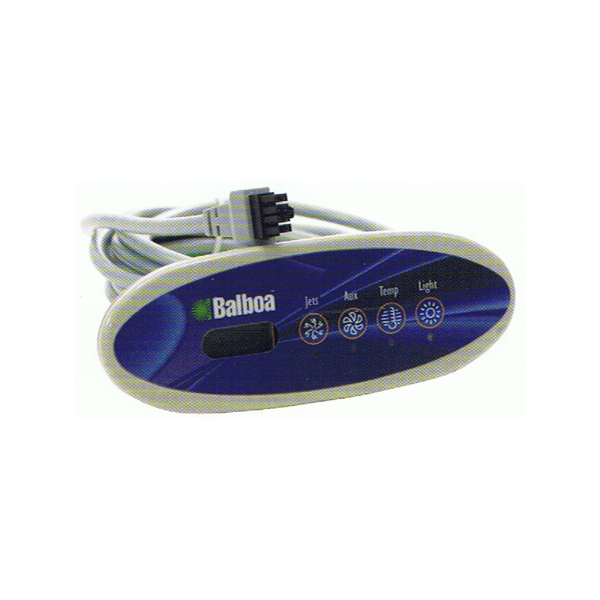

Balboa ML240 4 Button Controller
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa ML240 |
| Power: | Volts: 12 |
| Compatible with: | GL2000, GL8000 Used on Hot Tubs: |
| Button configuration: | JETS, AUX, TEMP and LIGHT |
| Screen: | LCD, basic 3 digit style |
| Connections: | 8 small plastic pins, 2 rows of 4. |
| Dimensions: | 133mm x 49mm |
| Additional notes: | Overlay included |

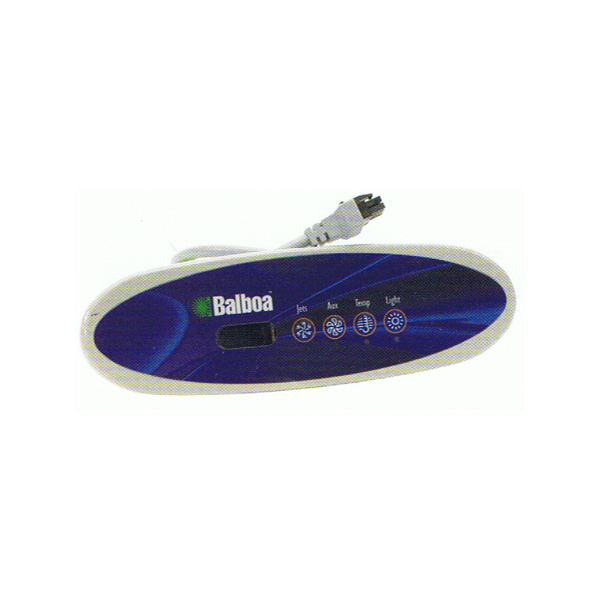

Balboa ML260 4 Button Controller
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa ML260 |
| Power: | Volts: 12 |
| Compatible with: | GL2000, GL8000 Used on Hot Tubs: Spaform amongst others |
| Button configuration: | JETS, AUX, TEMP and LIGHT |
| Screen: | LCD, basic 3 digit style |
| Connections: | 8 small plastic pins, 2 rows of 4. |
| Dimensions: | 178mm x 54mm |
| Additional notes: | Overlay included |

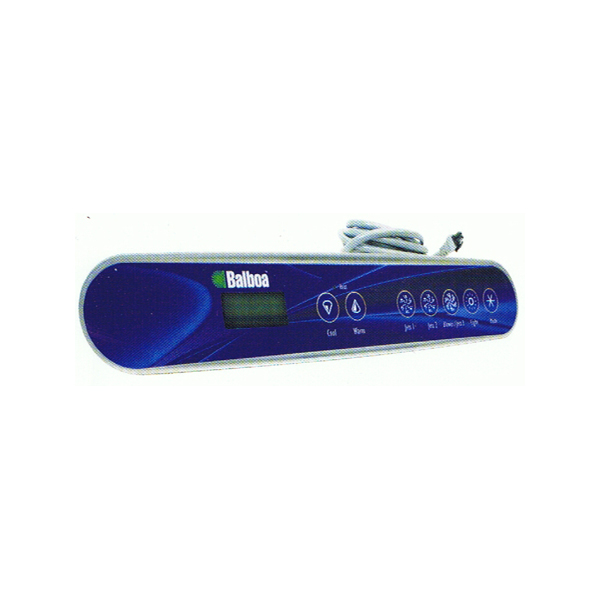

Balboa ML550 Long Touch Panel 2 Pump with Air or P3
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa ML500 |
| Power: | Volts: 12 |
| Compatible with: | GL2000, GL8000. Hot Tubs: Such as Clearwater |
| Button configuration: | COOL, WARM, JETS 1, JETS 2, BLOWER/JETS 3 (this button can be used to run either a 3rd pump or a blower as required), LIGHT and MODE |
| Screen: | Serial Standard style - 4 large digits in horizontal line |
| Connections: | 8 small plastic pins, 2 rows of 4. |
| Dimensions: | 348mm x 64mm |
| Additional notes: | Overlay included |

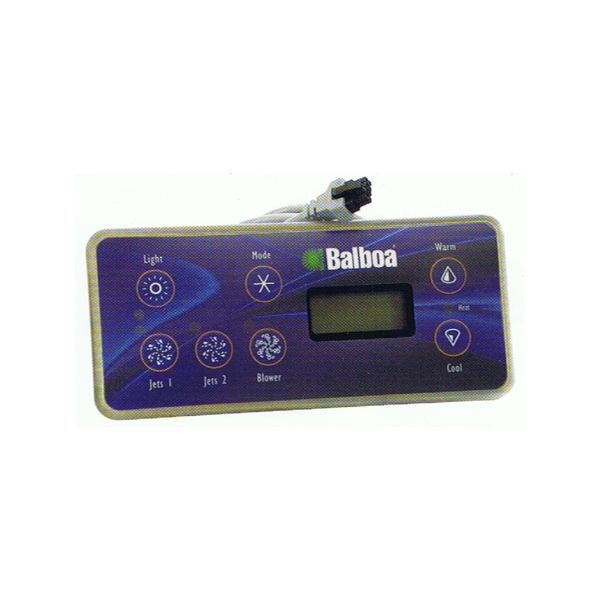

Balboa ML551 Touch Panel
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa ML551 |
| Power: | Volts: 12 |
| Compatible with: | GL2000, GL8000 Used on Hot Tubs: |
| Button configuration: | Light, Jets1, Jets2, Blower, Mode, Warm and Cool |
| Screen: | Serial Standard style - 4 large digits in horizontal line |
| Connections: | Telephone cord style |
| Dimensions: | 187mm x 83mm |
| Additional notes: | Overlay included |

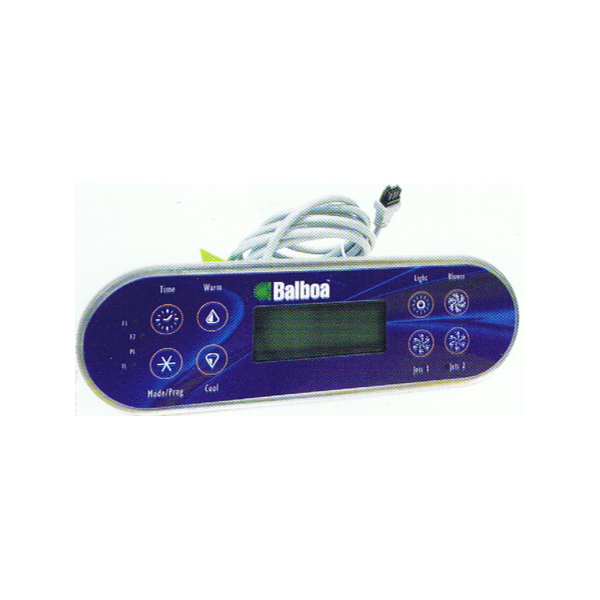

Balboa ML700 Touch Panel 2 pump with air
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa ML700 |
| Power: | Volts: 12 |
| Compatible with: | GL2000, GL8000 |
| Button configuration: | TIME, MODE/PROG, WARM, COOL, LIGHT, BLOWER, JETS 1 and JETS 2 |
| Screen: | Hi-Tec LCD large face screen, component symbols displayed. Time functions and advanced error message display. |
| Connections: | 8 small plastic pins, 2 rows of 4. |
| Dimensions: | 248mm x 79mm |
| Additional notes: | Overlay included |

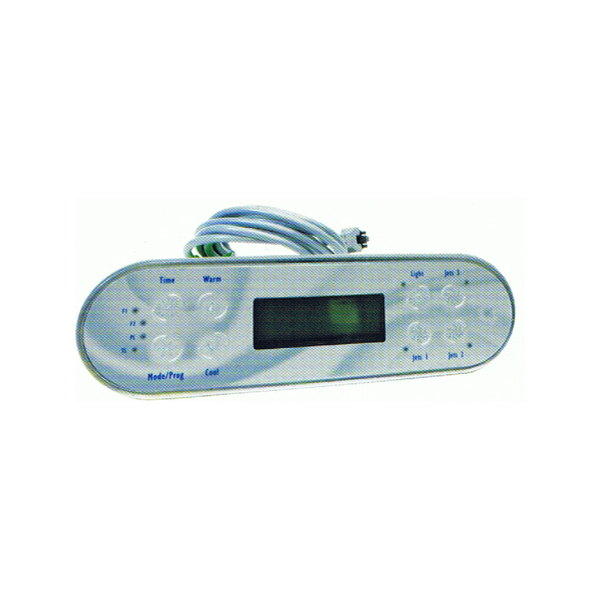

Balboa ML700 Touch Panel 3 pump no air
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa ML700 |
| Power: | Volts: 12 |
| Compatible with: | GL2000, GL8000 |
| Button configuration: | TIME, MODE/PROG, WARM, COOL, LIGHT, JETS 1, JETS 2 and JETS 3 |
| Screen: | Hi-Tec LCD large face screen, component symbols displayed. Time functions and advanced error message display. |
| Connections: | 8 small plastic pins, 2 rows of 4. |
| Dimensions: | 248mm x 79mm |
| Additional notes: | Overlay included |

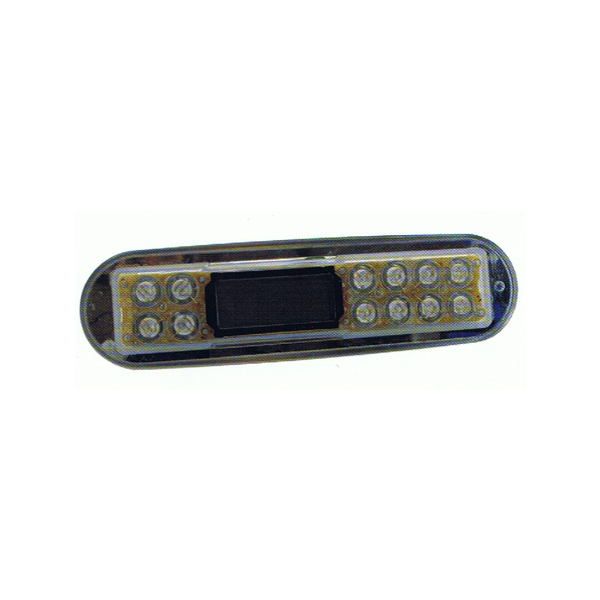

Balboa ML900 Touch Panel (overlay included)
| Type of product: | Topside control, touch panel or touch pad |
| Make and Model: | Balboa ML900 |
| Power: | Volts: 12 |
| Compatible with: | GL2000, GL8000 |
| Button configuration: | 12 button - TIME, MODE, WARM, COOL screen JETS1, JETS 2, JETS 3, OPTION, INVERT, FIBER, LIGHT, BLOWER |
| Screen: | Hi-Tec LCD large face screen, component symbols displayed. Time functions and advanced error message display. |
| Connections: | 8 small plastic pins, 2 rows of 4. |
| Dimensions: | 295mm x 80mm |
| Additional notes: | Overlay included. If your panel looks like this but has a slightly different button configuration, this panel should still work. All you need to do is change the dip switch setting for "panel scrunching" to off and all the buttons will then work in the correct order to this topside configuration. |
